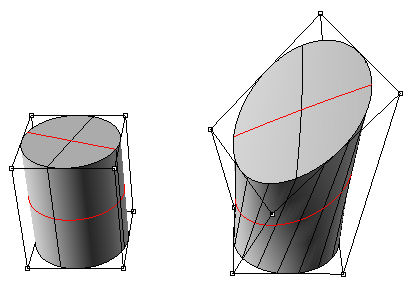

Morphs an object by mapping its eight bounding box points to eight new points.Note, this function only works on non-planar objects.
Rhino.BoxMorphObject (strObject, arrBoxPoints [, blnCopy])
Rhino.BoxMorphObject (arrObjects, arrBoxPoints [, blnCopy])
strObject |
Required.字符串。The identifier of the object to morph. |
arrObjects |
Required.Array.An array of strings identifying the objects to morph. |
arrBoxPoints |
Required.Array.An array of eight 3-D points that contain the modified bounding box points. |
blnCopy |
可选参数。Boolean.Copy the object.If omitted, the object will not be copied (False). |
String |
The identifier of the morphed object if successful. |
Array |
An array of strings identifying the morphed objects if successful. |
Null |
如果执行不成功或出错，返回空值。 |
Dim strObject, arrBox, arrPoint
strObject = Rhino.GetObject("Select object to box morph")
If Not IsNull(strObject) Then
arrBox = Rhino.BoundingBox(strObject)
arrPoint = arrBox(6)
arrPoint(2) = arrPoint(2) * 2
arrBox(6) = arrPoint
Rhino.BoxMorphObject strObject, arrBox
End If
